Milwaukee - M18 FUEL™ Top Handle Jigsaw

Milwaukee | SKU CODE: 4933464726 | EAN: 4058546226718 | GTIN: None

Milwaukee M18 FUEL™ Top Handle Jigsaw combines power, blade speed and precision, to deliver quality cuts in a wide variety of materials and applications. Equipped with MILWAUKEE®’s POWERSTATE™ Brushless Motor and REDLINK PLUS Intelligence, the M18 FUEL™ D-Handle Jig Saw provides higher blade speed than corded jig saws at 3500 strokes per minute, minimizing chipping or bucking for clean controlled cuts. With the M18™ REDLITHIUM™ XC5.0 battery, the saw is capable of cutting up to 105 linear feet of ¾” laminated particle board, delivering all-day productivity with less trips to the charger. The M18™ FUEL D-Handle Jig Saw features a variable-speed two-finger trigger, toolless blade-change and bevel adjust, and an integrated LED light with on/off blower to maximize cutline visibility.

See full description

Product Description

Milwaukee M18 FUEL™ Top Handle Jigsaw combines power, blade speed and precision, to deliver quality cuts in a wide variety of materials and applications. Equipped with MILWAUKEE®’s POWERSTATE™ Brushless Motor and REDLINK PLUS Intelligence, the M18 FUEL™ D-Handle Jig Saw provides higher blade speed than corded jig saws at 3500 strokes per minute, minimizing chipping or bucking for clean controlled cuts. With the M18™ REDLITHIUM™ XC5.0 battery, the saw is capable of cutting up to 105 linear feet of ¾” laminated particle board, delivering all-day productivity with less trips to the charger. The M18™ FUEL D-Handle Jig Saw features a variable-speed two-finger trigger, toolless blade-change and bevel adjust, and an integrated LED light with on/off blower to maximize cutline visibility.

Key Features

  • Dust blower keeps the cut line free of wood dust
  • Keyless bevel facility on the base plate allows for adjustment between 0 - 45°

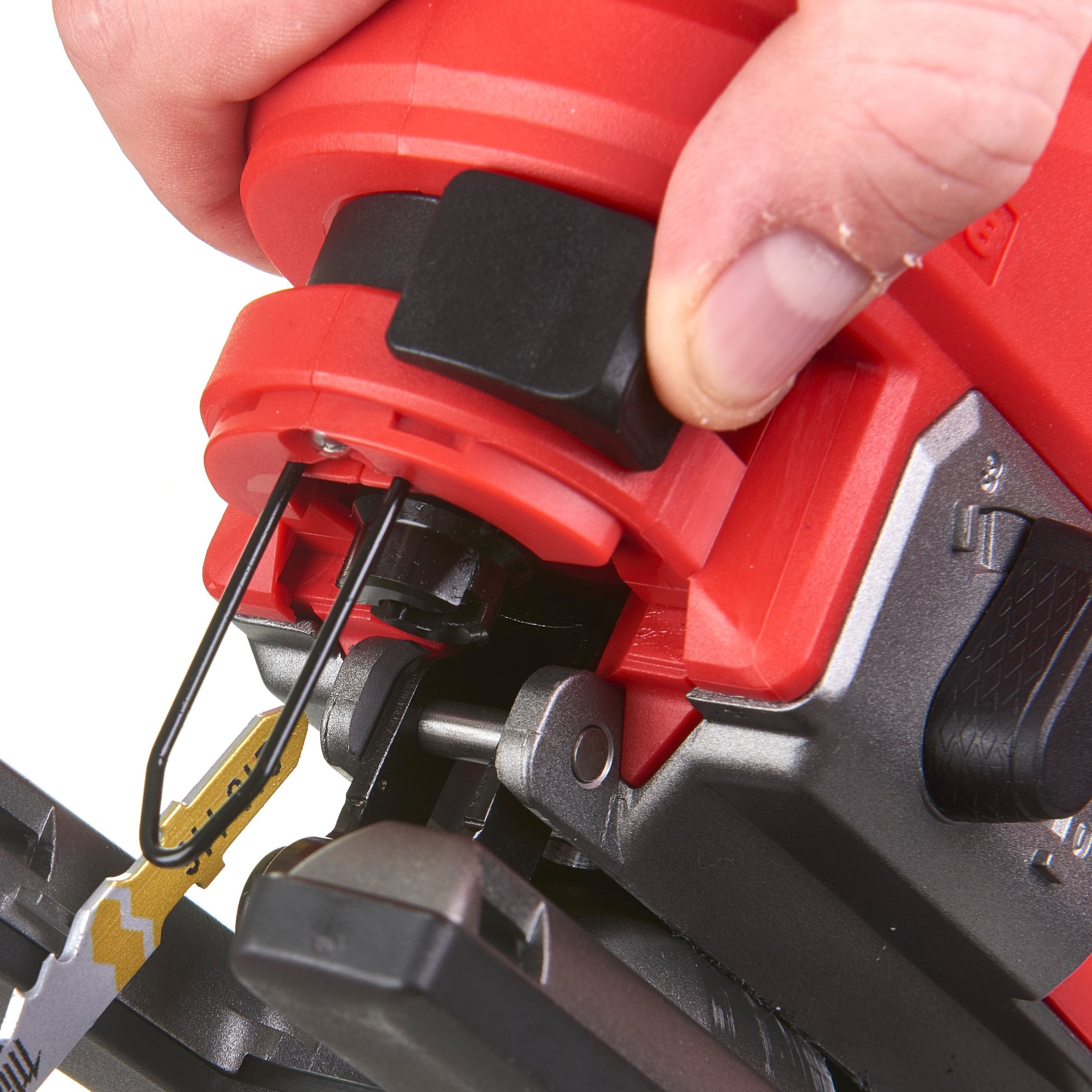

  • Patented FIXTEC™ blade clamp for fast and easy blade change
  • 5 stage pendulum action for increased cutting performance
  • Brushless POWERSTATE™ motor for fast cutting, long tool life and up to 32m in 19mm OSB (on a 5.0 Ah pack)
  • Integrated LED light for workspace illumination
  • Detachable soft shoe avoids marks and scratches when cutting soft materials
  • The DNA of our FUEL™ platform redefines the balance of cordless technologies. MILWAUKEE®'s POWERSTATE™ brushless motor, REDLITHIUM™ battery pack and REDLINK PLUS™ electronic intelligence delivering outstanding power, run time and durability
  • Flexible battery system: works with all MILWAUKEE® M18™ batteries

Technical Specifications

Stroke length 25 mm
Bevel capacity 45
Pendulum action Yes
Pendulum settings 4
No load stroke rate 0 - 3,500 spm
Max. cutting capacity wood 100 mm
Max. cutting capacity steel 10 mm
